Description

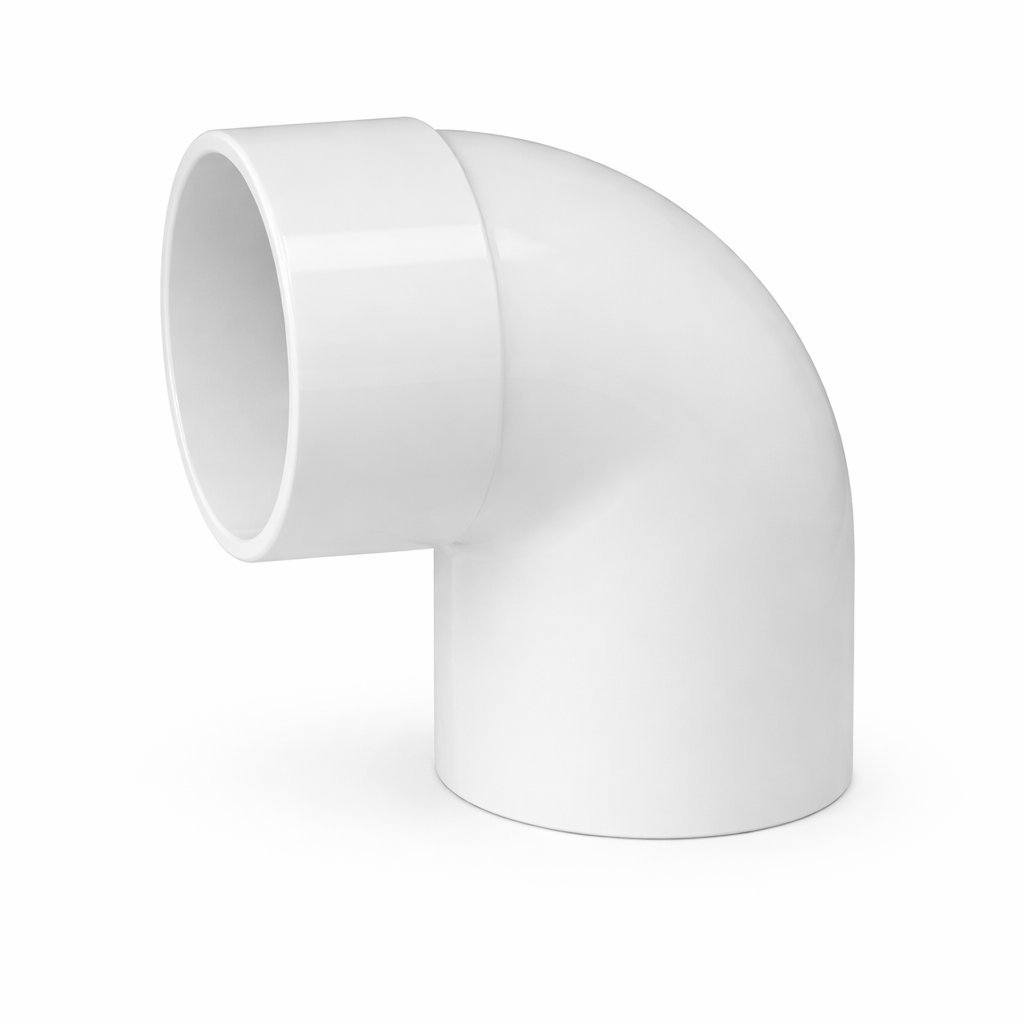

The Elbow 92° is an essential component for the biotech, pharmaceutical, and high-end food industries. While a standard 90° elbow is perfect for vertical-to-horizontal transitions, it can create “dead legs” or puddles in horizontal runs. The 92-degree bend provides an intentional 2% slope, which is the industry standard for ensuring that pipelines drain completely by gravity when the flow is stopped.
Technically, the Elbow 92° is critical for validated Clean-in-Place (CIP) and Sterilize-in-Place (SIP) systems. By ensuring that no cleaning solution or product residue remains in the pipe, it minimizes the risk of microbial growth and cross-contamination between batches. This “self-draining” geometry is often a regulatory requirement in processes governed by ASME BPE standards.
Our Elbow 92° fittings are manufactured to the highest sanitary standards, with ultra-smooth internal bore finishes and precise wall thickness. They are specifically designed for orbital welding or tri-clamp connections, allowing engineers to design “sloped” piping systems that are both aesthetically clean and functionally superior for drainage.
Key Features of the Elbow 92°
- Self-Draining Geometry: 2-degree offset ensures total fluid recovery.
- BPE Compliance: Meets stringent biotech and pharmaceutical drainage requirements.
- Hygienic Internal Finish: High-polish surfaces to eliminate bacterial attachment.
- Enhanced SIP Efficiency: Facilitates the complete removal of steam condensate.
- Zero Dead Legs: Designed to prevent “puddling” in horizontal pipe runs.
Technical Specifications for Elbow 92°
- Angle: Precisely 92 degrees (providing a 2% fall).
- Materials: Exclusively AISI 316L Stainless Steel for high purity.
- Standards: ASME BPE, DIN 11865, and ISO 1127.
- Surface Finish: Internal Ra < 0.4 µm (Electropolished options available).
- Size Range: Typically 1/2″ to 4″ (common in sanitary process lines).
Uses and Applications of the Elbow 92°
- Biotechnology: Transfer of sterile media and fermented products.
- Pharmaceuticals: WFI (Water for Injection) and purified water loops.
- Dairy Industry: Horizontal lines where frequent product changeovers occur.
- Fine Chemicals: Systems requiring complete evacuation of hazardous fluids.
- Brewing: Yeast propagation and fermentation cellar piping.
Usage and Maintenance Recommendations for Elbow 92°
- Always orient the 92° elbow correctly to ensure the slope goes in the direction of the drain.
- Use orbital welding for installation to maintain the sanitary integrity of the internal surface.
- Verify the slope of the entire run with a digital level after installation.
- Inspect gaskets in clamped systems for any protrusion that might hinder the 2% drainage path.
Frequently Asked Questions about Elbow 92°
Why not just use a standard 90° elbow and tilt the pipe?
Tilting a standard 90° elbow can stress the joints and make the vertical leg crooked. The 92° elbow allows the vertical leg to remain perfectly plumb while providing the necessary slope for the horizontal leg.
Is the 92° elbow used in residential plumbing?
No, this is a specialized industrial and sanitary fitting. Residential plumbing typically uses different methods (like 1/4 inch per foot slope) with standard PVC or copper fittings.
Does it affect flow rate compared to a 90°?
The difference in flow dynamics is negligible for most process applications; the primary benefit is the static drainage capability when the system is not in motion.
