Description

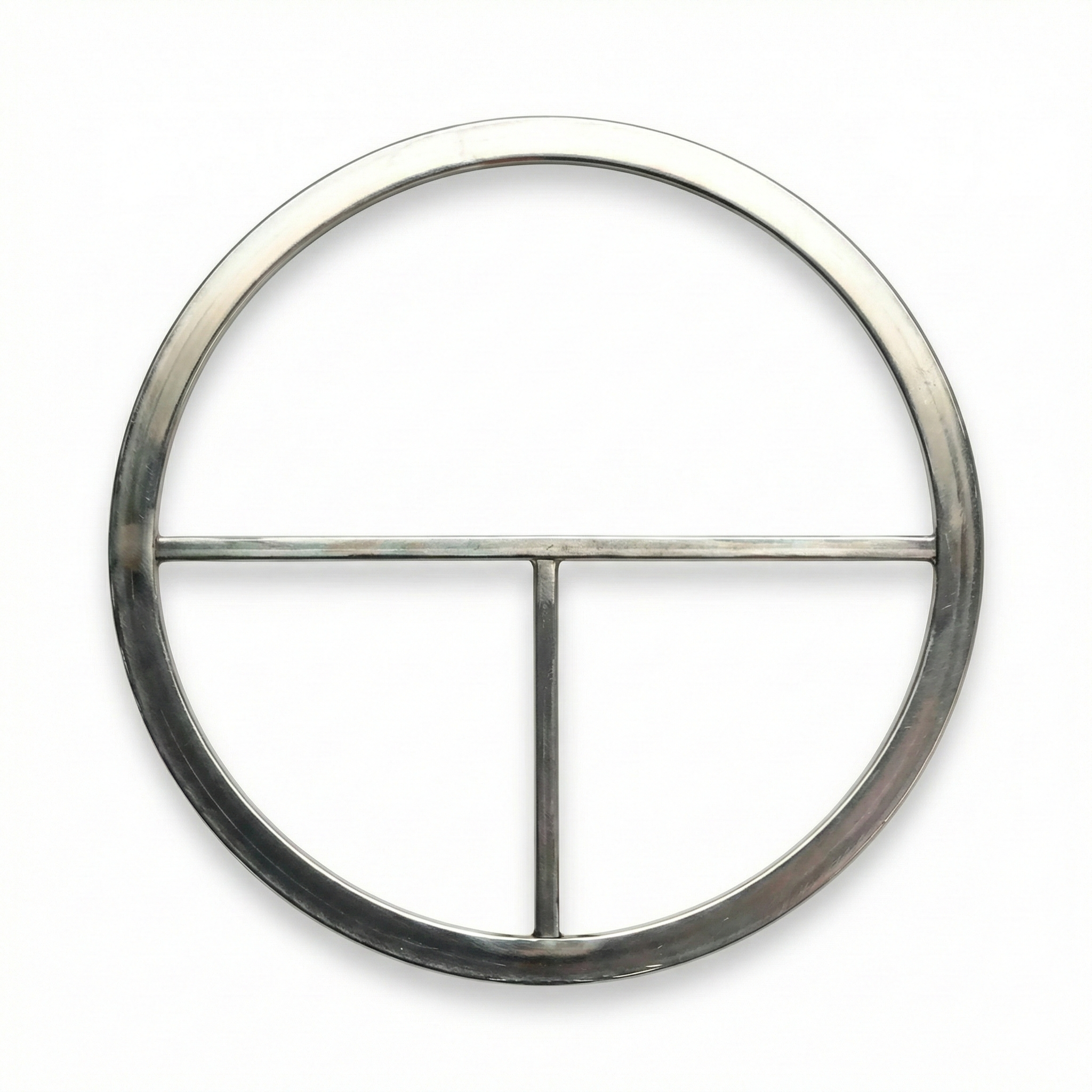

Gaskets are critical heat exchanger replacement parts engineered to create a pressure-tight, leak-proof seal between two mating flanged or plated surfaces, preventing fluid bypass and maintaining the thermal and mechanical integrity of the heat exchanger system. Used extensively as replacement components in plate heat exchangers, shell and tube units, and double pipe configurations, gaskets ensure continued operational efficiency and safe containment of process fluids throughout the service life of the equipment. Selecting the correct replacement gasket is essential to avoiding costly process shutdowns, fluid contamination, and premature equipment failure.
Manufactured from a wide range of engineered materials — including EPDM, NBR (nitrile), PTFE, neoprene, compressed fiber, and spiral wound metal — replacement gaskets for heat exchangers are designed to withstand the specific chemical, thermal, and mechanical demands of each application. The correct material selection ensures compatibility with process fluids such as steam, aggressive chemicals, oils, refrigerants, and food-grade liquids, while maintaining sealing integrity under cyclic pressure and temperature fluctuations common in industrial heat transfer systems.
Main Features of Gaskets for Heat Exchangers
- Leak-proof sealing: precision-engineered profiles matched to OEM plate and flange dimensions.
- Wide material range: EPDM, NBR, PTFE, neoprene, compressed fiber, and metallic options available.
- Chemical and thermal resistance: formulated to withstand aggressive fluids, steam, and extreme temperatures.
- OEM-compatible designs: replacement profiles available for major heat exchanger brands and models.
- Pressure integrity: maintains seal under sustained and cyclic operating pressures.
- Long service life: high-quality elastomers and composites resist compression set and degradation.
Technical Specifications of Gaskets for Heat Exchangers
- Type: plate heat exchanger gaskets, flange gaskets, spiral wound, ring joint, and sheet gaskets.
- Material: EPDM, NBR, PTFE, neoprene, graphite, compressed fiber, stainless steel (metallic types).
- Temperature range: varies by material, from cryogenic service to high-temperature steam applications.
- Pressure rating: available for low, medium, and high-pressure industrial service.
- Compatibility: suitable for water, steam, oils, chemicals, refrigerants, and food-grade fluids.
- Application range: plate, shell and tube, double pipe, and brazed heat exchanger systems.
Uses and Applications of Gaskets for Heat Exchangers
- Plate heat exchanger maintenance: replacement of worn or deteriorated inter-plate sealing gaskets.
- Flange connections: sealing flanged joints in shell and tube and double pipe heat exchangers.
- Chemical and petrochemical plants: sealing against aggressive solvents, acids, and hydrocarbons.
- Food and beverage processing: FDA-compliant elastomers for hygienic and CIP-compatible systems.
- HVAC and refrigeration: maintaining pressure integrity in chilled water and refrigerant circuits.
- Power generation: high-temperature and high-pressure sealing in steam and condensate systems.
Recommendations for Installation and Use
- Always select gasket material based on fluid type, operating temperature, and maximum system pressure.
- Replace gaskets at recommended service intervals rather than waiting for visible leakage or failure.
- Clean mating surfaces thoroughly before installing new gaskets to ensure proper seating and seal integrity.
- Apply correct and uniform bolt torque according to manufacturer specifications to avoid uneven compression.
- Verify OEM compatibility — plate profile, groove dimensions, and port configuration — before ordering replacement gaskets.
Frequently Asked Questions about Gaskets for Heat Exchangers
What are Heat Exchanger Gaskets used for?
They are used to create a leak-proof seal between mating surfaces in plate, shell and tube, and double pipe heat exchangers. As replacement parts, they restore sealing performance and prevent fluid leakage, cross-contamination, and pressure loss in industrial and commercial thermal systems.
How do I know which gasket material to choose?
Material selection depends on the process fluid, operating temperature, and system pressure. EPDM is common for water and steam, NBR suits oils and fuels, PTFE is preferred for aggressive chemicals, and metallic types are used for extreme pressure and temperature conditions.
How often should heat exchanger gaskets be replaced?
Replacement intervals depend on operating conditions, fluid aggressiveness, and thermal cycling frequency. As a general guideline, gaskets should be inspected during every scheduled maintenance shutdown and replaced if signs of compression set, cracking, swelling, or leakage are detected.
Can gaskets be reused after disassembly?
In most cases, gaskets should not be reused after disassembly. Once compressed and exposed to thermal cycling, elastomeric gaskets lose their ability to form a reliable seal when reinstalled. Replacing with new gaskets during maintenance is strongly recommended to ensure system integrity.
